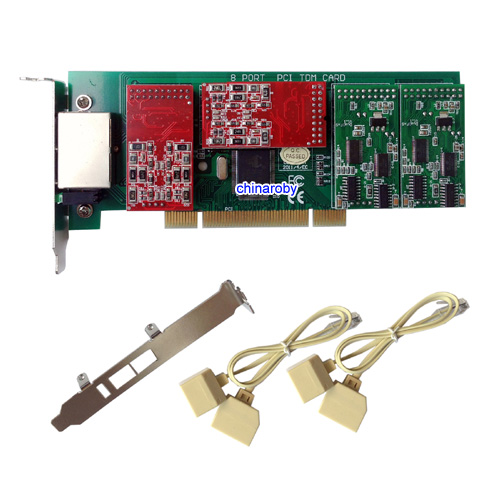

-The Asterisk card X8P-2U is with Low Profile for 2U computer.
- It is with PCI connector
-It supports FXS and FXO station interfaces for connecting analog telephones and analog POTS lines through a PC.
-It's a PCI Card for Asterisk,FreePBX,Issabel,Free PBX and other Open Source Telephony projects.It supports Dahdi/Zaptel.
-The card is fully compatible with all similar analog cards and modules with no changes to the drivers.
-FXO modules are used to plug existing analog telephone lines into your phone system.
With the Asterisk card , Open Source Asterisk PBX software and a standard PC, users can create a Small Office Home Office (SOHO) telephony environment which includes all the sophisticated features of a high-end PBX/Voicemail platform.
Scalable and Effective SOHO Solution, Target Applications
-Small Office Home Office (SOHO) applications
-Gateway Termination to Analog Telephones
-Add Inexpensive Analog Phones to Existing PBXs
-Wireless Point-to-Point Applications between Asterisk Servers
Services and Features
- Caller ID and Call waiting Caller ID
-ADSI Telephones
-PCI Half-length Slot
-RJ-11C Connector

Modules
Motherboard:X8P-2U
Dual FXO module: 0-4 pcs
Dual FXS module: 0 -4pcs
Hardware Requirement
500-Mhz Pentium III or better with 64MB RAM

- Issabel / FreePBX / Free PBX Settings :

[ChinaRoby.localdomain ~]# dahdi_genconf
[ChinaRoby.localdomain ~]# dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
Channel 05: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 05)
Channel 06: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 06)
Channel 07: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 07)
Channel 08: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 08)

	OEM services
		Label, Sticker
		Logo silk screen printing
		Customized gift box
		Re-designing PCB

Model Number
