Model :X400P-22

Asterisk card with 2 FXS+2FXO modules

wildcard tdm400p

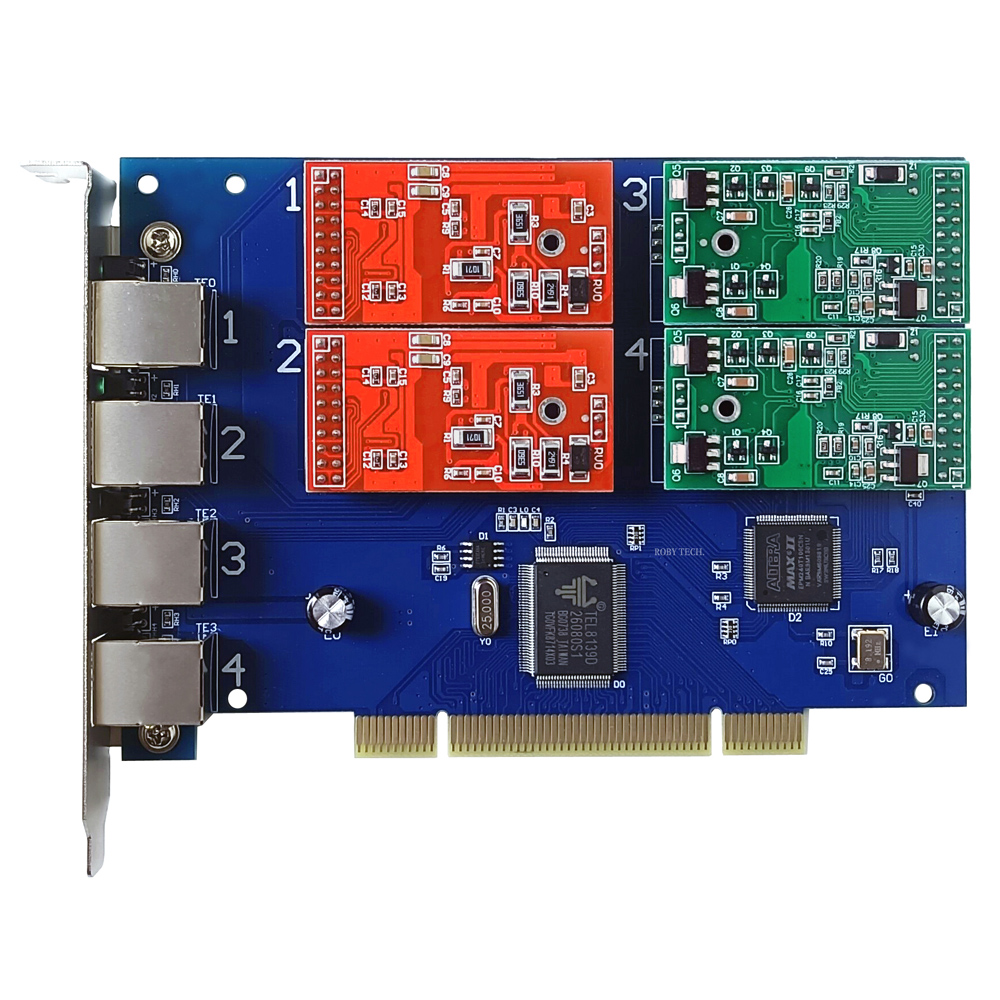

photo of wildcard tdm400p Photo
faq of asterisk card Buy Now
asterisk card features

-The wildcard tdm410p is a half-length PCI 2.2-compliant card that supports FXS and FXO station interfaces for connecting analog telephones and analog POTS lines through a PC.
-It's a PCI Card for Asterisk,FreePBX,Trixbox,Elastix and other Open Source Telephony projects with 4 modules.
-The card is fully compatible with all similar analog cards and modules with no changes to the drivers.
-FXO modules are used to plug existing analog telephone lines into your phone system.
With the Asterisk card TDM400P, Open Source Asterisk PBX software and a standard PC, users can create a Small Office Home Office (SOHO) telephony environment which includes all the sophisticated features of a high-end PBX/Voicemail platform.
Scalable and Effective SOHO Solution, Target Applications
-Small Office Home Office (SOHO) applications
-Gateway Termination to Analog Telephones
-Add Inexpensive Analog Phones to Existing PBXs
-Wireless Point-to-Point Applications between Asterisk Servers
Services and Features
-Caller ID and Call Waiting Caller ID
-ADSI Telephones
-PCI Half-length Slot
-RJ-11C Connector

-Echo Cancellation Module VPMADT032 (optional)
fxo card

Modules
Motherboard: TDM400P
FXO module: 2 pcs
FXS module: 2 pcs

Hardware Requirement
500-Mhz Pentium III or better with 64MB RAM
Available PCI Slot 5v

  OEM services
  voip ata Label, Sticker
  voip ata Logo silk screen printing
  voip ata Customized gift box
  voip ata Re-designing PCB

hot to connect
wildcard tdm400p

- Under Elastix (2FXO+2FXS):
Elastix

[ChinaRoby.localdomain ~]# dahdi_genconf
[ChinaRoby.localdomain ~]# dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXO Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXO Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
[ChinaRoby.localdomain ~]# asterisk -vvr
ChinaRoby*CLI> dahdi show channels
Chan Extension Context Language MOH Interpret Blocked State
pseudo default en default In Service
1 from -pstn en default In Service
2 from-pstn en default In Service
3 from-internal en default In Service
4 from-internal en default In Service

See also

Model No.
Motherboard
X410P
4
0
Cheap asterisk card
X410P
3
1
low cost asterisk card
X410P
2
2
tdm400p
X410P
1
3
Cheap asterisk card
X410P
0
4
Cheap asterisk card
