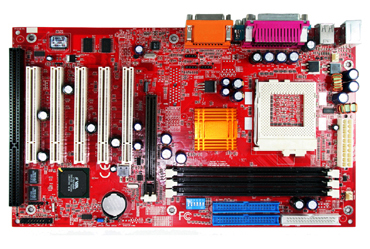

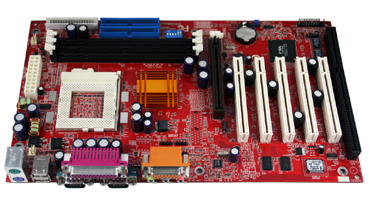

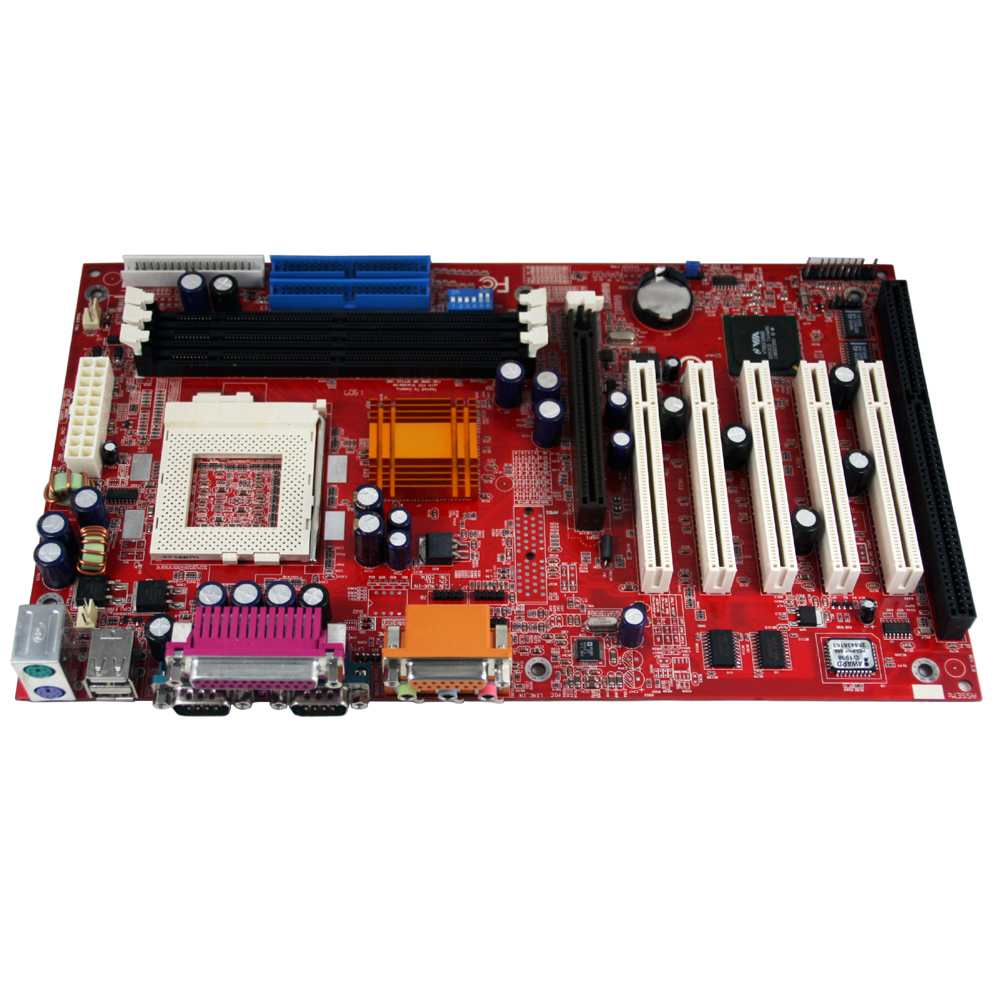

ISA Motherboard
Model: 694X-ISA
Profile :
Processor : Socket 370 Intel Pentium 3,Celeron 2/3 CPU,max 1.3GHz ,FSB 66/100/133 MHZ
Chipset : VIA 694x(NB), VIA686(SB)
Memory : 3*168pin DIMM,SD-RAM 100/133 max.up to 512MB
5*PCI slots, 1*AGP 8X slot , 1*ISA
ISA motherboard,ATX industrial motherboard mainboard for ISA computer/server
Datasheet:
Processor : Socket 370 Intel Pentium 3,Celeron 2/3 CPU,max 1.3GHz ,FSB 66/100/133 MHZ
Chipset : VIA 694x(NB), VIA686(SB)
Memory : 3*168pin DIMM,SD-RAM 100/133 max.up to 512MB
5*PCI slots, 1*AGP 8X slot , 1*ISA
ISA motherboard,ATX industrial motherboard mainboard for ISA computer/server
Model: 694X-ISA ver 1.0
Processor : Socket 370 Intel Pentium 3,Celeron 2/3 CPU,max 1.3GHz
FSB 66/100/133 MHZ
Chipset : VIA 694x(NB), VIA686(SB)
Memory : 3*168pin DIMM,SD-RAM 100/133 max.up to 512MB
Ethernet : NONE
VGA : NONE
ISA Motherboard
- Expansion :
5*PCI slot
1*AGP 8X
1*ISA
Audio : Realtek AC'97 AUDIO
Storage : 1*FDD
2*UltraDMA 133/100/66/33
- Back I/O Interface :
1*Keyboard interface
1*Mouse interface
2*USB 1.0
2* COM
1* PRN Interface
1*Audio interface(MIC, line out, line in)
- Internal I/O interface :
1* Fpanel
1* CD-IN
1*CPUFAN interface and 1*SYSFAN interface
1* 20 PIN Power interface
- Accessories :
1 x 40 pin IDE cable
1 x FDD cable
1 x I/O shield
BIOS : Award BIOS with 4Mbit Flash ROM
Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI
Power Type : ATX Input
Operation Temp : -10 C-60 C
Operation Humidity10%~90% relative humidity, non-condensing
Size : 305mm(12") x 208mm(8.2"), ATX
|
