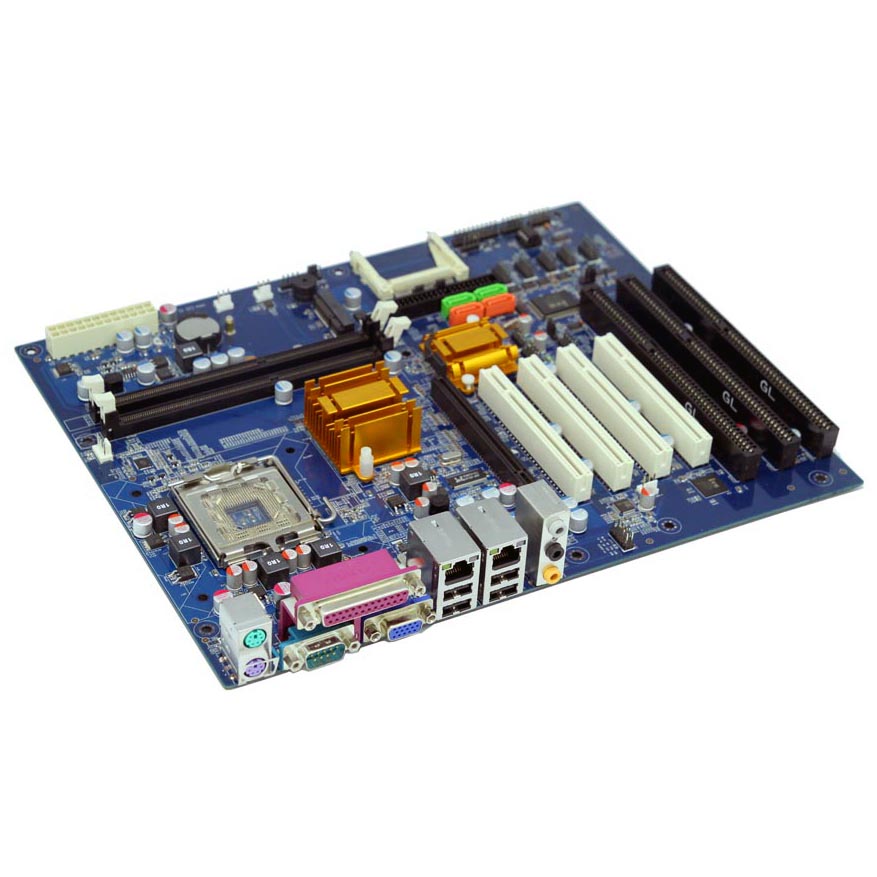

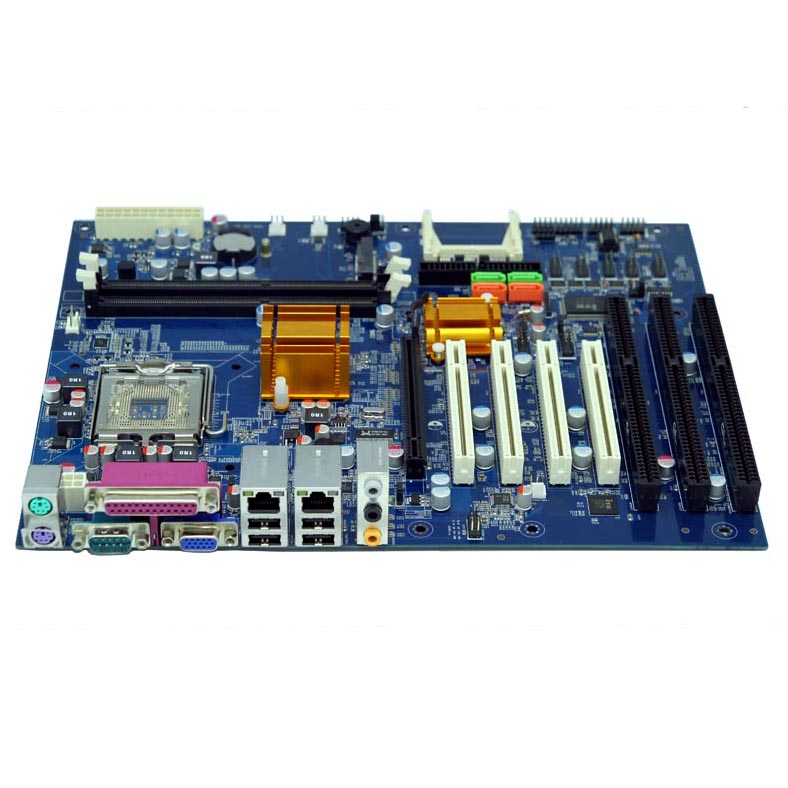

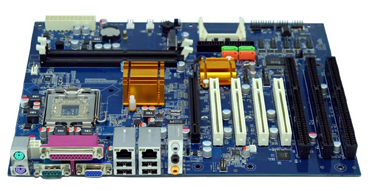

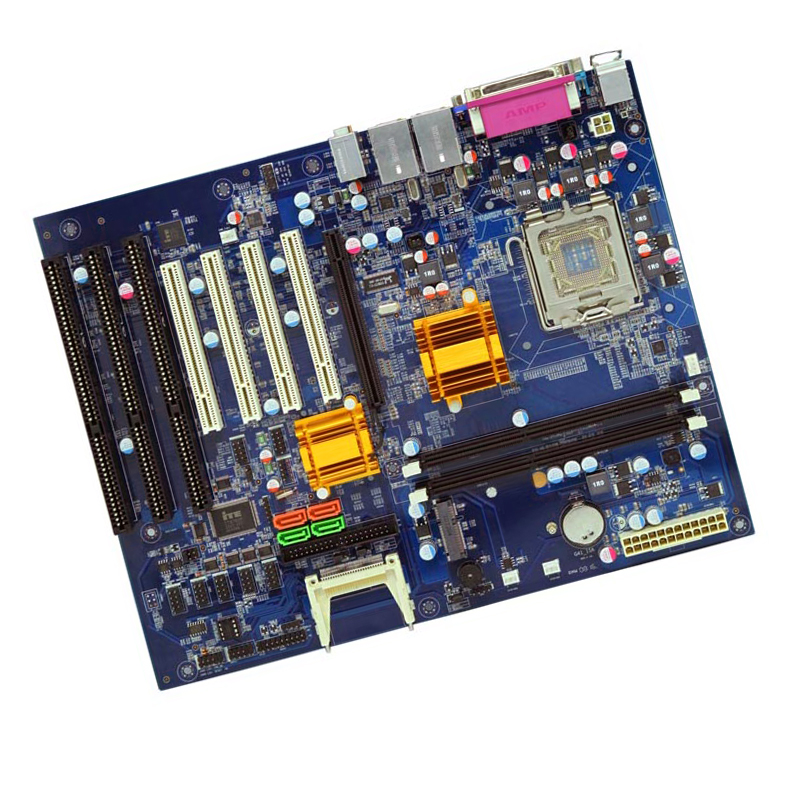

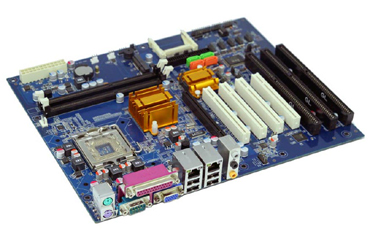

ISA Slot Motherboard
Model : G41-3ISA
Profile :
ISA Mainboard ATX Motherboard,Compatible devices: Server,PC,Computer,G41 Socket 775 ATX Industrial motherboard
Chipset Intel G41+ 82801GB
Cpu model socket: Socket LGA775 for Intel Core2,Core 2 Quad,Core 2 Duo CPU,FSB 533/800/1066/1333 CPU, 2* DDR3 DIMM,support 1333/1066/800MHz ,MAX. 8GB
Slots: 4*PCI,1*PCIe 16x,3*ISA, 4*USB , 1* COM , 1*VGA ,2* RJ45 LAN port
ISA Industrial motherboard Intel,G41 ATX Board,G41 ISA Slot Mainboard
Datasheet:
Processor :Socket LGA775 for Intel Core2,Core 2 Quad,Core 2 Duo CPU
FSB 533/800/1066/1333 CPU
Chipset :Intel G41+ 82801GB
Memory :2* DDR3 DIMM,support 1333/1066/800MHz ,MAX. 8GB
Ethernet :Realtek RTL8111E Gbe Ethernet controllers
VGA :Onboard Intel GMA4500 display card
ISA Slot Motherboard
Expansion :
4*PCI slot
1*PCIe 16x
3*ISA
Audio :Realtek ALC662 AC'97 Codec Audio
Storage :
4*SATA
1*Msata ,support SSD
1*IDE
1*CF
ISA Slot Motherboard

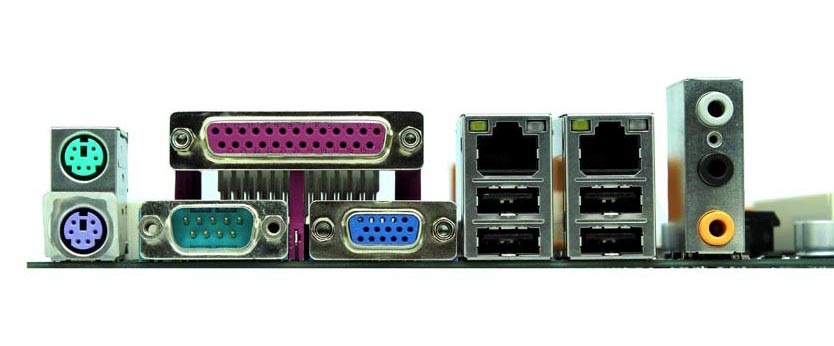

Back I/O Interface :
1*Keyboard interface
1*Mouse interface
4*USB
1* COM
1*VGA Port
1* PRN Interface
1*Audio interface(MIC, line out, line in)
2* RJ45 LAN port
ISA Slot Motherboard
Internal I/O interface :
1* Fpanel
5* COM port
1*Front Audio
1* GPIO ,1*IrDA
1*CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface
1*TPM Interface
3*USB
1* 24PIN + 4 PIN Power interface
BIOSAward BIOS with 4Mbit Flash ROM
Power Type :ATX Input
Operation Temp : -10 C-60 C
Operation Humidity : 10%~90% relative humidity, non-condensing
Size : 305 x 244 mm,ATX
ISA Slot Motherboard
|
