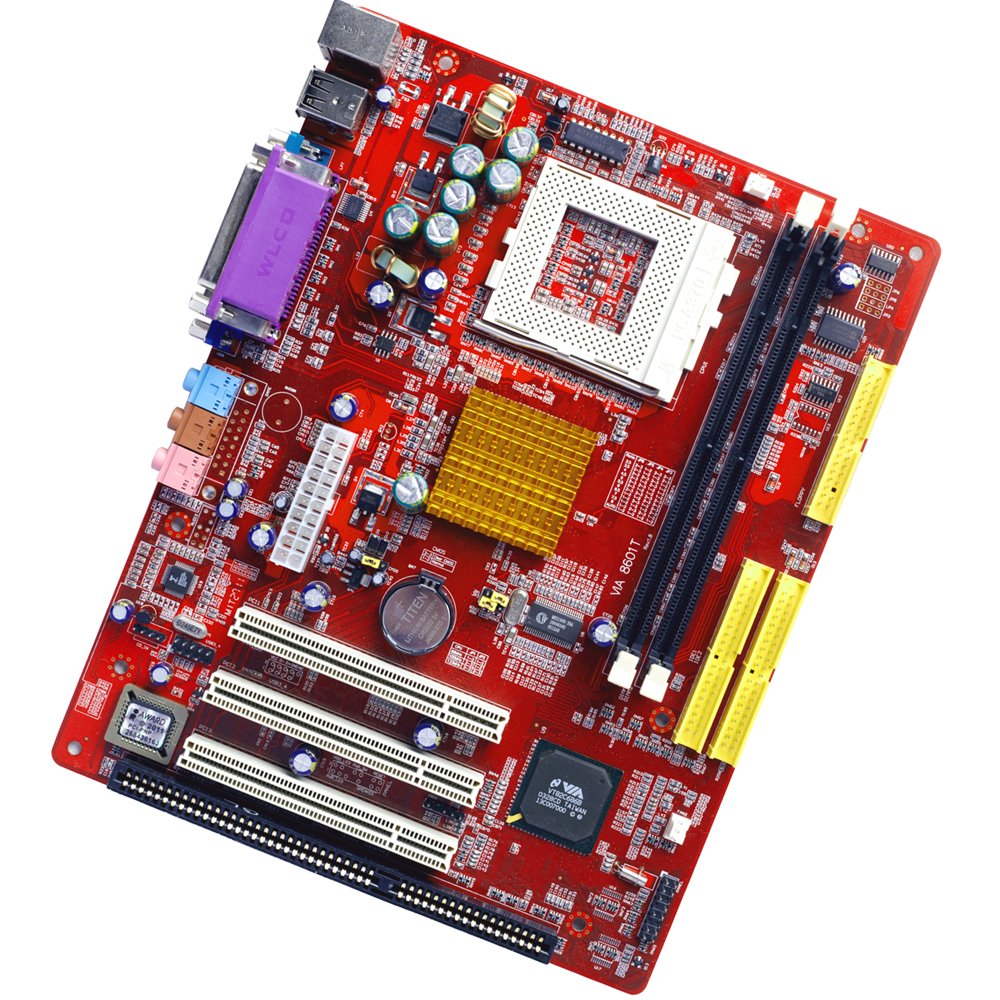

Model: V8601T-ISA

Profile :

ISA mATX Mainboard,Compatible devices: Industrial Server,PC,Computer,VIA 8601 Industrial mATX motherboard
Chipset: VIA 8601(NB), VIA8606(SB)
Cpu model socket: Socket 370 Intel Pentium 3,Celeron 2/3 CPU,max 1.3GHz ,FSB 66/100/133 MHZ
Memory:2*168pin DIMM,SD-RAM 100/133 max.up to 512MB
Slots: 3*PCI slot,1*ISA ,1*VGA port ,1* COM
Size :192 mm(W) X 244 mm (L) ,Micro ATX form factor, ISA Industrial motherboard Board

Datasheet:

Processor : Socket 370 Intel Pentium 3,Celeron 2/3 CPU,max 1.3GHz
FSB 66/100/133 MHZ
Chipset : VIA 8601(NB), VIA8606(SB)
Memory : 2*168pin DIMM,SD-RAM 100/133 max.up to 512MB
Ethernet : NONE
VGA : Onbaord VGA

Expansion :
3*PCI slots
1*ISA
Audio : Realtek AC'97 AUDIO
Storage : 1*FDD
2*UltraDMA 133/100/66/33

Back I/O Interface : 1*Keyboard interface
1*Mouse interface
2*USB 1.0
1*VGA port
1* COM
1* PRN Interface
1*Audio interface(MIC, line out, line in)

Internal I/O interface :
1* Fpanel
1* CD-IN
2*USB 1.0
1*CPUFAN interface and 1*SYSFAN interface
1* 20 PIN Power interface
Accessories : 1 x 40 pin IDE cable
1 x FDD cable
1 x I/O shield
BIOS : AMI 2Mb Flash ROM
Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI
Power Type : ATX Input
Operation Temp : -10 C-60 C
Operation Humidity 10%~90% relative humidity, non-condensing
Size : 192 mm(W) X 244 mm (L) ,Micro ATX form factor
