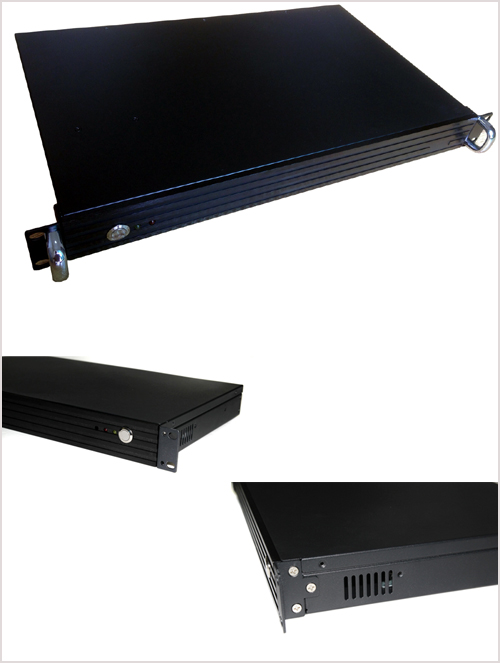

Asterisk E1 T1 PBX PBX-1U kit works with IMI45 embedded Mini-itx ATOM motherboard and designed for Small & Medium  Businesses. System developers can run most of the production version PBX software including asterisk in this kit. It can also simplify the installation procedure and thus, no more complicated migration work needed.
Technical Specifications:
CPU: J1900
DRAM: 2GB DDR2 SDRAM
SSD :32G
44pin PATA connector for 2.5" Notebook Hard Drive
1 SATA slot for 2.5" Notebook SATA Hard Drive (with DC12V Power in)
Power: 20PIN ATX power supply
Three front panel LEDs, for 3 programmable GPO status indicator
Expansion: 1 PCI slot, fixed and individual interrupt
Asterisk E1 T1 PBX
Asterisk E1 T1 PBX
Asterisk E1 T1 PBX Connectivity:
1 PCI-E 10/100/1000Mbps Ethernet controller ( rlt8111c)
1 PCI-E 10/100Mbs Ethernet controllers(rtl8103e)
IMI45 is configured with the above 2 Ethernet Channels.
I/O: 1*DB9 serial port, for debug console usage,
Rack Mountable
Asterisk E1 T1 PBX Key Features:
80 Concurrent calls
Up to 1000 registers
Full Feature IP PBX
Video Calls
Recording
DID(Direct Inward Dialing Number)
Support SKYPE for SIP
Call Monitoring
PRI T1 / E1 PBX Basic Features:
Codec: G.711-Ulaw,G.711-Alaw,G.726,G.729,GSM,SPEEX,H.261,H.263,H.263+,H.264
Call Hold/Forward/Transfer/Waiting/Parking
Call Paging and Intercom
Caller ID
Music On Hold
DISA(Direct Inward System Access)
Flexible Dial Plan
Ring Group
Conference Room
Call Logs
BLF(Busy Lamp Field)
Configuration By web
Built-in SIP/IAX2 server
Build-in voice mail server
System Backup and Restore
Echo Cancelation/VAD
Support Static/DHCP/PPPOE
DDNS Client(Support Dyndns.org)
Support NTP(Network Time Protocol)
PRI T1 / E1 PBX Size and Weight:
Size: 4.5x45x28.2 cm
G.W.:5kg
N.W.:3.5kg
PRI T1 / E1 PBX Softwares:
Issabel,FreePBX,Asterisk,...
Default Software : Issabel.
PRI T1 / E1 PBX
Issabel / FreePBX Settings :
[chinaroby.localdomain ~]# dahdi_genconf
[chinaroby.localdomain ~]# dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================
Channel 1: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 1)
Channel 2: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 2)
... ... ... ...
Channel 123: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 123)
Channel 124: Clear channel (Default) (Echo Canceler: oslec) (Slaves: 124)
