Analog telephony card

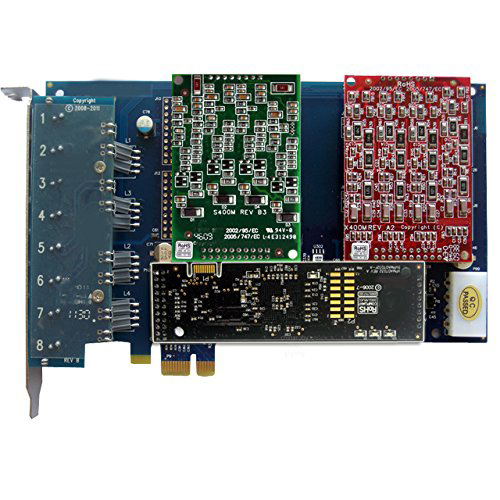

-The Analog telephony card AEX800 is a half-length PCI-E(PCI Express)-compliant card that supports FXS and FXO station interfaces for connecting analog telephones and analog POTS lines through a PC.
-It's a PCI-e Card for Asterisk,FreePBX,Issabel,Free PBX and other Open Source Telephony projects
-The card is fully compatible with all similar analog cards and modules with no changes to the drivers.
-FXO modules are used to plug existing analog telephone lines into your phone system.
With the Analog telephony card AEX800, Open Source Asterisk PBX software and a standard PC, users can create a Small Office Home Office (SOHO) telephony environment which includes all the sophisticated features of a high-end PBX/Voicemail platform.
Scalable and Effective SOHO Solution, Target Applications
-Small Office Home Office (SOHO) applications
-Gateway Termination to Analog Telephones
-Add Inexpensive Analog Phones to Existing PBXs
-Wireless Point-to-Point Applications between Asterisk Servers
Services and Features
- Caller ID and Call waiting Caller ID
-ADSI Telephones
-PCI Half-length Slot
-RJ-11C Connector-Echo Cancellation Module VPMADT032 (optional)

Analog telephony card

Analog telephony card

Modules
Motherboard: AEX800
Quad FXO modules FXO-400 : 0~2 pcs
Quad FXS modules FXS-400 : 0~2 pcs
Hardware Requirement
500-Mhz Pentium III or better with 64MB RAM
Available PCI-e


Analog telephony card

- Issabel / FreePBX / Free PBX Settings :

[ChinaRoby.localdomain ~]# dahdi_genconf
[ChinaRoby.localdomain ~]# dahdi_cfg -vvvv

DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
Channel 05: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 05)
Channel 06: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 06)
Channel 07: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 07)
Channel 08: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 08)

[ChinaRoby.localdomain ~]# asterisk -vvr
ChinaRoby*CLI> dahdi show channels
Chan Extension Context Language MOH Interpret Blocked State
pseudo default en default In Service
1 from -pstn en default In Service
2 from-pstn en default In Service
3 from-pstn en default In Service
4 from-pstn en default In Service
5 from-pstn en default In Service
6 from-pstn en default In Service
7 from-pstn en default In Service
8 from-pstn en default In Service

OEM services
	Label, Sticker
	Logo silk screen printing
	Customized gift box

Related Products

FXS FXO Cards
Model No.	Connector	Size	FXO FXS Ports	Buy
X100P	PCI	2U / 4U	1
X400P	PCI	4U	4
X410P	PCI	4U	4
AEX410	PCI-E	2U / 4U	4
TDM800P	PCI	4U	8
AEX800	PCI-E	4U	8
