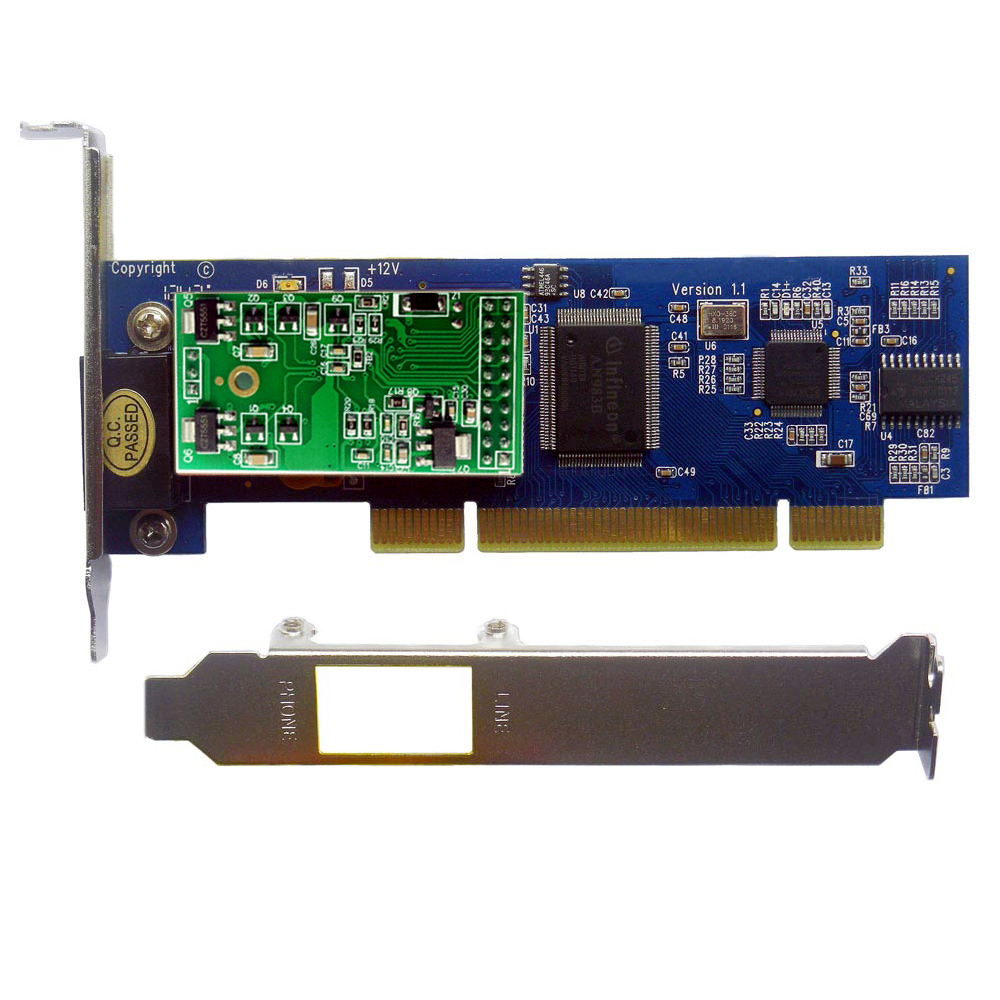

Asterisk FXS Card : X100P

-The Asterisk card X100P is a half-length PCI 2.2-compliant card that supports FXS and FXO station interfaces for connecting analog telephones and analog POTS lines through a PC.
-It's a PCI Card for Asterisk,FreePBX,Issabel,Free PBX and other Open Source Telephony projects.It supports Dahdi/Zaptel.
-The card is fully compatible with all similar analog cards and modules with no changes to the drivers.
-FXS modules are used to plug existing analog telephone ,FXO modules are pluged into your PSTN phone system.
With the Asterisk card X100P, Open Source Asterisk PBX software and a standard PC, users can create a Small Office Home Office (SOHO) telephony environment which includes all the sophisticated features of a high-end PBX/Voicemail platform.
Scalable and Effective SOHO Solution, Target Applications
-Small Office Home Office (SOHO) applications
-Gateway Termination to Analog Telephones
-Add Inexpensive Analog Phones to Existing PBXs
-Wireless Point-to-Point Applications between Asterisk Servers
Services and Features
- Caller ID and Call waiting Caller ID
-ADSI Telephones
-PCI Half-length Slot
-RJ-11C Connector

Modules
Motherboard:X100P
FXO module: 0-1 pcs
FXS module: 0 -1pcs
Hardware Requirement
500-Mhz Pentium III or better with 64MB RAM

	OEM services
		Label, Sticker
		Logo silk screen printing
		Customized gift box
		Re-designing PCB

See also

Model No.	Motherboard	FXO module (pcs)	FXS module (pcs)	Picture
X100P-10	X100P	1	0
X100P-01	X100P	0	1

Related Products

FXS FXO Cards
Model No.	Connector	Size	FXO FXS Ports	Buy
X100P	PCI	2U / 4U	1
X400P	PCI	4U	4
X410P	PCI	4U	4
AEX410	PCI-E	4U	4
TDM800P	PCI	4U	8
AEX800	PCI-E	4U	8

..

....

..
